2024 Kymco CV3
STANDARD FEATURES
Keyless Ignition –For Convenience and Security
Modern Bodywork with LED Lighting
2-Position Adjustable Windshield – For a Customized Air Pocket
Folding 3-Step Adjustable Back Rest
6” TFT Display with Full Digital Instrumentation and Noodoe 2.0 Cell Phone Connectivity – Clearly Visible Instruments, Day or Night, and Customizable through your Smartphone
3-Step Heated Grips – For Comfort and Safety on Cold Rides
Anti-Tilt Suspension Lock – Allows the CV# to Stand Upright at Stops. No Need to put your Foot Down
Dual Power Modes (Full and Rain) – Full Power is Available when Road Conditions are Good, with an Added Measure of Safety in the Wet
50/50 Weight Distribution – Aids Both Stability and Handling
Advanced Bosch ABS – Keeps the CV3 in Control in Low Traction Conditions Resulting in Shorter Stopping Distances
Cruise Control – Reduces Hand/Arm Fatigue Going Long Distances
Tire Pressure Monitoring – For an Added Measure of Safety
Under Seat Storage – Easily Fits a Full Face Helmet
DIMENSIONS
Length: 84.25"
Width: 30.9"
Height: 57.1"
Wheelbase: 62.2"
Seat Height: 30.9"
Estimated Fuel Mileage: 49 MPG
Claimed Dry Weight: 621.7 lbs.
Fuel Capacity: 4.1 gal.
ENGINE
Engine Type: DOHC, 4-Stroke, 8V Inline Twin
Displacement: 550.4cc
Bore x Stroke: 69mm x 73.6mm
Compression Ratio: 11:1
Claimed Horsepower: 51 HP @ 7,500 RPM
Claimed Torque: 40.6 lbf-ft @ 5,750 RPM
Fuel Management System: Fuel Injection with Dual Power Modes
Cooling: Liquid
Ignition: Electronic
Transmission: PTM CVT
Final Drive: Toothed Belt
CHASSIS
Tires-Front: 110/70 13 (x2)
Tires-Rear: 160/60R15
Front Brakes: Dual 270mm Drilled Discs/Twin Piston Calipers

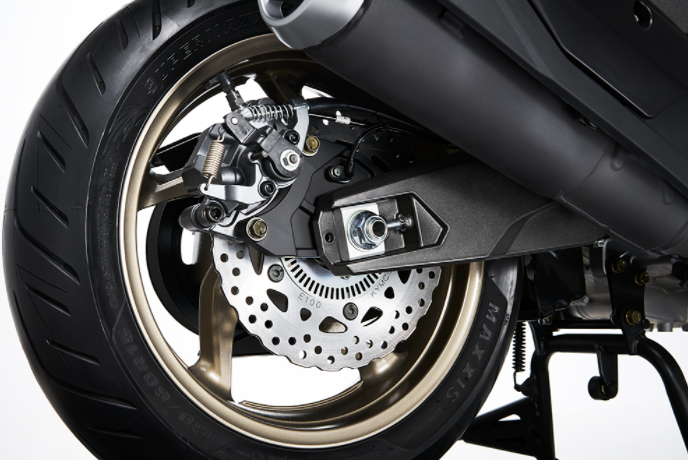

Rear Brakes: Single 260mm Drilled, “Petal” disc/Single Piston Caliper
Front Suspension: Double Suspension Shock Absorbers with Patented KALS (Kymco Advance Lean Suspension) Which Allows 40° of Lean Angle, Equipped with Anti-Tilt Lock
Rear Suspension: True Unit Swingarm Controlled by a Single Shock Absorber
Frame: Aluminum Alloy Twin Spar Frame with Exposed Aluminum Subframe
Local Pick-Up Only: You can come and pick up your new ride at 4425 S. 84th Street, Omaha, Ne 68127
