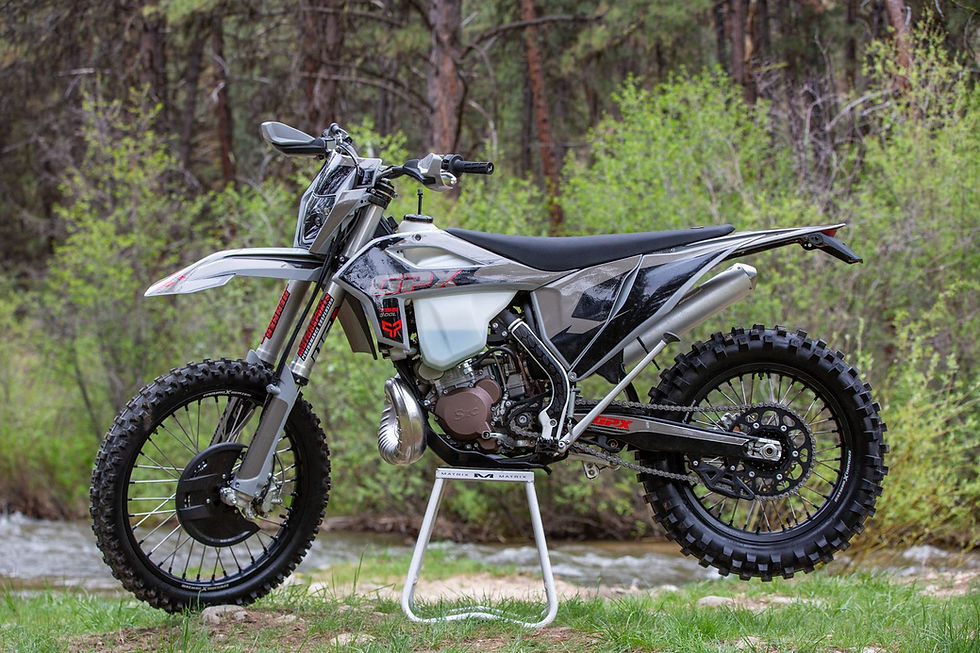

2024 Pitster Pro TSE 300R

STANDARD FEATURES
294cc Two Stroke Engine w/ Electric Start
6-Speed Transmission
Smooth Hydraulic Clutch
Fully-Adjustable Suspension
Front Disc Guard
LED Headlight
DIMENSIONS
Wheelbase: 58.3"
Seat Height: 37"
Ground Clearance: 13"
Dry Weight: 237 lb.
Fuel Capacity: 2.5 Gallons
Trail: 110mm
Rake Angle: 27.1 Degrees
ENGINE
Engine Type: Two-Stroke, Single Cylinder, w/ Balancer Shaft
Cooling: Liquid Cooled with Electronic Fan
Displacement: 294cc
Bore x Stroke: 72mm x 72mm
Compression Ratio: 13.2:1
Fuel System: Case Reed Induction with 38mm Carburetor
Transmission: 6-Speed
Clutch: Oil Bath, Multi Disc, Bevel-Washer-Spring, Hydraulic-Actuated
Starter: Electric w/ Kick Backup
Max Power: 52 HP @ 9000RPM
Final Gearing: 13x50
CHASSIS
Front Wheel: 80/100-21"
Rear Wheel: 110/90-18"
Front Brake: 260mm Disc, 2-Piston Caliper
Rear Brake: 240mm Disc, Single-Piston Caliper
Front Suspension: 48mm Upside Fork, Adjustable Compression, Rebound, & Preload, 12.2" Travel
Rear Suspension: Non-Linkage, Piggy-Back Shock, Adjustable Rebound, High-Speed & Low-Speed Compression, 11.8" Travel
Frame Type: Chromo Steel Central-Backbone w/ Alloy Subframe
